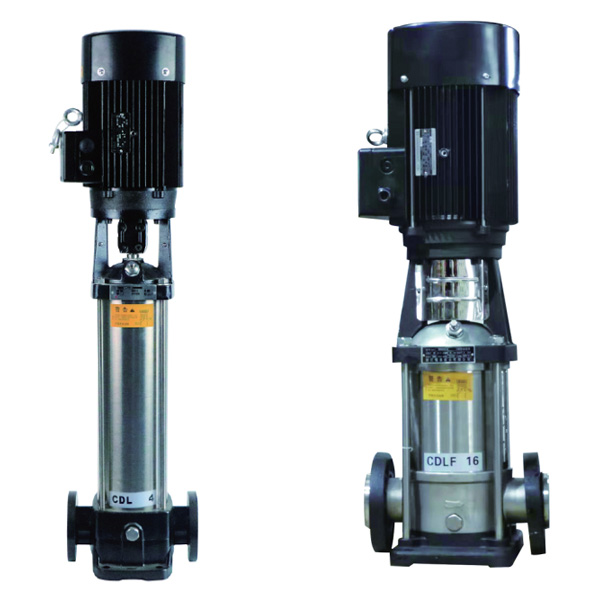

Vertical Multi-stage Pipeline Pump

Product Mould Number CDLF

Capacity: 2-90m³/h
Haed: 15-236m
Speed: 2900r/min
Suction diameter: Φ25mm-Φ100mm
Media Temperature: ≤80°C
Work presstion: MAX 2.5MPa

PRODUCT DETAILS

CDL(F) Technical Parameter
Type Capatity Head Power Voltage Speed Caliber
（m3/h） (m) (kw) (V) (r/min) (mm)
25CDL(F)2-80 2 60 1.1 380 2900 25
25CDL(F)2-90 2 67 1.1 380 2900 25
25CDL(F)2-100 2 75 1.1 380 2900 25
25CDL(F)2-110 2 82 1.1 380 2900 25
25CDL(F)2-120 2 90 1.5 380 2900 25
25CDL(F)2-130 2 98 1.5 380 2900 25
25CDL(F)2-140 2 105 1.5 380 2900 25
25CDL(F)2-150 2 112 1.5 380 2900 25
25CDL(F)2-160 2 120 2.2 380 2900 25
25CDL(F)2-170 2 128 2.2 380 2900 25
25CDL(F)2-180 2 136 2.2 380 2900 25
25CDL(F)2-190 2 144 2.2 380 2900 25
25CDL(F)2-200 2 151 2.2 380 2900 25
25CDL(F)2-210 2 158 2.2 380 2900 25
25CDL(F)2-220 2 165 2.2 380 2900 25
25CDL(F)2-230 2 174 3 380 2900 25
25CDL(F)2-240 2 182 3 380 2900 25
25CDL(F)2-250 2 190 3 380 2900 25
25CDL(F)2-260 2 198 3 380 2900 25
32CDL(F)4-50 4 40 1.1 380 2900 32
32CDL(F)4-60 4 48 1.1 380 2900 32
32CDL(F)4-70 4 56 1.5 380 2900 32
32CDL(F)4-80 4 64 1.5 380 2900 32
32CDL(F)4-90 4 72 2.2 380 2900 32
32CDL(F)4-100 4 81 2.2 380 2900 32
32CDL(F)4-110 4 88 2.2 380 2900 32
32CDL(F)4-120 4 95 2.2 380 2900 32
32CDL(F)4-130 4 104 3 380 2900 32
32CDL(F)4-140 4 113 3 380 2900 32
32CDL(F)4-150 4 121 3 380 2900 32
32CDL(F)4-160 4 129 3 380 2900 32
32CDL(F)4-170 4 137 4 380 2900 32
32CDL(F)4-180 4 145 4 380 2900 32
32CDL(F)4-190 4 153 4 380 2900 32
32CDL(F)4-200 4 162 4 380 2900 32
32CDL(F)4-210 4 170 4 380 2900 32
32CDL(F)4-220 4 178 4 380 2900 32
40CDL(F)8-30 8 27 1.1 380 2900 40
40CDL(F)8-40 8 36 1.5 380 2900 40
40CDL(F)8-50 8 45 2.2 380 2900 40
40CDL(F)8-60 8 54 2.2 380 2900 40
40CDL(F)8-70 8 64 3 380 2900 40
40CDL(F)8-80 8 73 3 380 2900 40
40CDL(F)8-90 8 83 4 380 2900 40
40CDL(F)8-100 8 92 4 380 2900 40
40CDL(F)8-110 8 102 4 380 2900 40
40CDL(F)8-120 8 111 4 380 2900 40
40CDL(F)8-130 8 121 5.5 380 2900 40
40CDL(F)8-140 8 130 5.5 380 2900 40
40CDL(F)8-150 8 139 5.5 380 2900 40
40CDL(F)8-160 8 148 5.5 380 2900 40
40CDL(F)8-170 8 158 7.5 380 2900 40
40CDL(F)8-180 8 167 7.7 380 2900 40
40CDL(F)8-190 8 177 7.5 380 2900 40
40CDL(F)8-200 8 186 7.5 380 2900 40
40CDL(F)8-210 8 195 7.5 380 2900 40
40CDL(F)8-220 8 205 7.5 380 2900 40
50CDL(F)12-20 12 20 1.5 380 2900 50
50CDL(F)12-30 12 30 2.2 380 2900 50
50CDL(F)12-40 12 40 3 380 2900 50
50CDL(F)12-50 12 50 3 380 2900 50
50CDL(F)12-60 12 60 4 380 2900 50
50CDL(F)12-70 12 70 5.5 380 2900 50
50CDL(F)12-80 12 80 5.5 380 2900 50
50CDL(F)12-90 12 91 5.5 380 2900 50
50CDL(F)12-100 12 101 7.5 380 2900 50
50CDL(F)12-110 12 111 7.5 380 2900 50
50CDL(F)12-120 12 121 7.5 380 2900 50
50CDL(F)12-130 12 131 11 380 2900 50
50CDL(F)12-140 12 141 11 380 2900 50
50CDL(F)12-150 12 151 11 380 2900 50
50CDL(F)12-160 12 162 11 380 2900 50
50CDL(F)12-170 12 171 11 380 2900 50
50CDL(F)12-180 12 183 11 380 2900 50
50CDL(F)16-20 16 22 2.2 380 2900 50
50CDL(F)16-30 16 34 3 380 2900 50
50CDL(F)16-40 16 46 4 380 2900 50
50CDL(F)16-50 16 58 5.5 380 2900 50
50CDL(F)16-60 16 70 5.5 380 2900 50
50CDL(F)16-70 16 82 7.5 380 2900 50
50CDL(F)16-80 16 94 7.5 380 2900 50
50CDL(F)16-90 16 106 11 380 2900 50
50CDL(F)16-100 16 118 11 380 2900 50
50CDL(F)16-110 16 130 11 380 2900 50
50CDL(F)16-120 16 141 11 380 2900 50
50CDL(F)16-130 16 154 15 380 2950 50
50CDL(F)16-140 16 166 15 380 2950 50
50CDL(F)16-150 16 178 15 380 2950 50
50CDL(F)16-160 16 189 15 380 2950 50
50CDL(F)16-170 16 202 15 380 2950 50
50CDL(F)20-10 20 11 1.1 380 2900 50
50CDL(F)20-20 20 23 2.2 380 2900 50
50CDL(F)20-30 20 35 4 380 2900 50
50CDL(F)20-40 20 47 5.5 380 2900 50
50CDL(F)20-50 20 58 5.5 380 2900 50
50CDL(F)20-60 20 70 7.5 380 2900 50
50CDL(F)20-70 20 82 7.5 380 2900 50
50CDL(F)20-80 20 94 11 380 2900 50
50CDL(F)20-90 20 106 11 380 2900 50
50CDL(F)20-100 20 118 11 380 2900 50
50CDL(F)20-110 20 130 15 380 2950 50
50CDL(F)20-120 20 142 15 380 2950 50
50CDL(F)20-130 20 154 15 380 2950 50
50CDL(F)20-140 20 166 15 380 2950 50
50CDL(F)20-150 20 178 18.5 380 2950 50
50CDL(F)20-160 20 190 18.5 380 2950 50
50CDL(F)20-170 20 202 18.5 380 2950 50
65CDL(F)32-10 32 14 2.2 380 2900 65
65CDL(F)32-20 32 27 4 380 2900 65
65CDL(F)32-30 32 40 5.5 380 2900 65
65CDL(F)32-40 32 53 7.5 380 2900 65
65CDL(F)32-50 32 67 11 380 2900 65
65CDL(F)32-60 32 81 11 380 2900 65
65CDL(F)32-70 32 95 15 380 2950 65
65CDL(F)32-80 32 109 15 380 2950 65
65CDL(F)32-90 32 124 18.5 380 2950 65
65CDL(F)32-100 32 138 18.5 380 2950 65
65CDL(F)32-110 32 153 22 380 2950 65
65CDL(F)32-120 32 167 22 380 2950 65
65CDL(F)32-130 32 181 30 380 2950 65
65CDL(F)32-140 32 196 30 380 2950 65
65CDL(F)32-150 32 210 30 380 2950 65
65CDL(F)32-160 32 225 30 380 2950 65
80CDL(F)45-10 45 19 4 380 2900 80
80CDL(F)45-20 45 39 7.5 380 2900 80
80CDL(F)45-30 45 58 11 380 2900 80
80CDL(F)45-40 45 78 15 380 2950 80
80CDL(F)45-50 45 97 18.5 380 2950 80
80CDL(F)45-60 45 116 22 380 2950 80
80CDL(F)45-70 45 135 30 380 2950 80
80CDL(F)45-80 45 154 30 380 2950 80
80CDL(F)45-90 45 174 37 380 2950 80
80CDL(F)45-100 45 193 37 380 2950 80
80CDL(F)45-110 45 214 45 380 2950 80
80CDL(F)45-120 45 236 45 380 2950 80
100CDL(F)65-10-1 65 13 4 380 2900 100
100CDL(F)65-10 65 20 5.5 380 2900 100
100CDL(F)65-20-2 65 27 7.5 380 2900 100
100CDL(F)65-20-1 65 34 11 380 2900 100
100CDL(F)65-20 65 41 11 380 2900 100
100CDL(F)65-30-2 65 47 15 380 2950 100
100CDL(F)65-30-1 65 54 15 380 2950 100
100CDL(F)65-30 65 61 18.5 380 2950 100
100CDL(F)65-40-2 65 67 18.5 380 2950 100
100CDL(F)65-40-1 65 74 22 380 2950 100
100CDL(F)65-40 65 81 22 380 2950 100
100CDL(F)65-50-2 65 89 30 380 2950 100
100CDL(F)65-50-1 65 95 30 380 2950 100
100CDL(F)65-50 65 103 30 380 2950 100
100CDL(F)65-60-2 65 111 30 380 2950 100
100CDL(F)65-60-1 65 118 37 380 2950 100
100CDL(F)65-60 65 125 37 380 2950 100
100CDL(F)65-70-2 65 133 37 380 2950 100
100CDL(F)65-70-1 65 141 37 380 2950 100
100CDL(F)65-70 65 148 45 380 2950 100
100CDL(F)65-80-2 65 156 45 380 2950 100
100CDL(F)65-80-1 65 163 45 380 2950 100
100CDL(F)90-10-1 90 13 5.5 380 2900 100
100CDL(F)90-10 90 19 7.5 380 2900 100
100CDL(F)90-20-2 90 28 11 380 2900 100
100CDL(F)90-20 90 40 15 380 2950 100
100CDL(F)90-30-2 90 49 18.5 380 2950 100
100CDL(F)90-30 90 62 22 380 2950 100
100CDL(F)90-40-2 90 72 30 380 2950 100
100CDL(F)90-40 90 84 30 380 2950 100
100CDL(F)90-50-2 90 93 37 380 2950 100
100CDL(F)90-50 90 106 37 380 2950 100
100CDL(F)90-60-2 90 117 45 380 2950 100
100CDL(F)90-60 90 130 45 380 2950 100
